Applications:
- Hopper Loading
- Fiber Tensioning
- Material Conveying
- Waste/Trim Removal
- Chip Removal
- Part Transfer
- Filling Operations
- Compact
- Quiet
- No Moving Parts
- Fits Standard Hose Or Tube
- Aluminum Or Stainless Steel
- High Throughput Capability

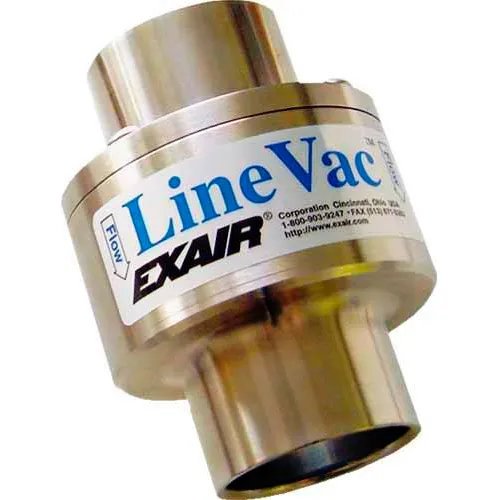

Exair 6063, Compressed Air Operated Line Vac™ Only 6063, Stainless Steel, 33 SCFM, 1-1/2" Hose
Write a Review
|
Questions & Answers (0)
Product Description
EXAIR®'s Compressed Air Operated Line Vac™ connects to standard hose or tube to create a powerful in-line conveyor. The compact design features large throat diameters for maximum throughput capability. Line Vac conveyors are ideal for moving large volumes of material over long distances. A small amount of compressed air is injected through directed nozzles to produce a vacuum on one end and high output flows on the other, with instantaneous response. The material flow rate is easily controlled with a pressure regulator. No moving parts or electricity assures maintenance free operation. Line Vacs are available in aluminum and stainless steel.
Applications:
Applications:
PRICE
$555.00
1
1
Ships in 3 Business Days
Add or Change Zip Code(s)
Easy online or call-in returns. Read return policy
Key Specifications
| Brand | Exair |
Weights & Dimensions
| Weight | 3 lbs |
| Throat Diameter | 1.25 in |
| Hose Inside Diameter | 1.5 in |
| Diameter | 2.75 |
Product Details
| Length | 4.38 in |
| CFM | 33 CFM |
| Air Inlet Thread Size (NPT) | 3/8" in |
| Male/Female Thread | Female |
| Material | Stainless Steel |
| Package Type | Box |
| Manufacturers Part Number | 6063 |
| PSI | 250 psi |
| @ PSIG | 80 psig |
Compliance & Certifications
| Certifications | CE Compliant |
