For the professional tile installer, this 10 in. High Capacity Wet Tile Saw provides 37 in. rip cut capacity, 8-1/2 in. crosscut capacity, and 1/32 in. over 30 in. accuracy. The rip cut capacity, along with an 18 in. cutting clearance (left of blade), allow you to rip 36 in. x 36 in. tile in half. The crosscut capacity is ideal for 6 in. sill cutting and up to 8 in. x 48 in. plank cutting at a 30% offset. Perform rip cuts up to 41 in. with plunge. The 28-7/8 in. width from column to cart edge allows you to pass through standard 30 in. door frames. When the water tray system is installed, 18 in. x 36 in. and 24 in. x 24 in. tiles are fully contained within the coverage area, limiting mess when working indoors. And, at 91 lbs., it’s made for portability to and from the jobsite.

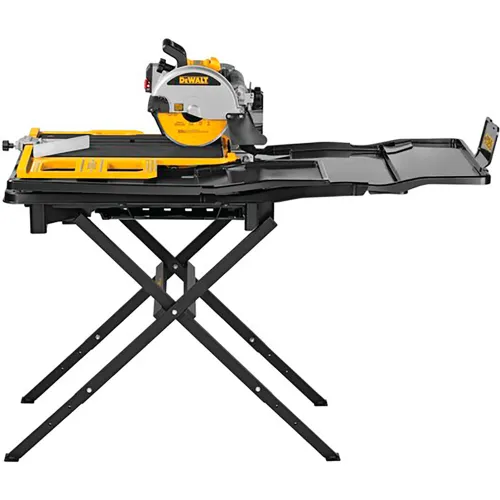

DeWalt® 10" High Capacity Wet Tile Saw with Stand
Write a Review
Questions & Answers (0)
Specifications
Key Specifications
| Width | 31 |
| Brand | DeWalt |
Weights & Dimensions
| Weight | 91 lbs |
| Blade Diameter | 10 in |
| Arbor Size | 5/8 |
Product Details
| Length | 30 |
| Max RPM | 4200 rpm |
| Type | Tile Saw with Stand |
| Voltage | 120 |
| Color | Yellow |
| Manufacturers Part Number | D36000S |
| Amperage | 15 A |
