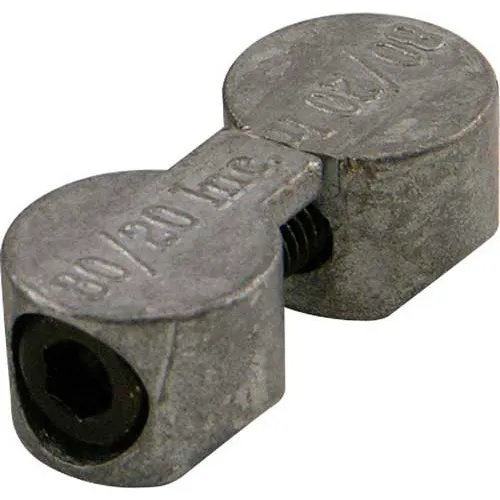

80/20 3369 Butt Fastener

80/20 3343 Double End Fastener Features: Provides a clean, hidden method of connecting profiles at 90° without the use of joining plates Winged tabs of clip prevent mating profile from rotating Mounting profile requires an end tap; mating profile requires an access hole to reach the screw head

80/20 3273 T-Slot Touch fasteners Features: 15 Series compatible Mounts lightweight panels and parts quickly and easily The finned projection twists easily into the T-slot Includes a self-adhesive mating padPart

The standard end fastener assembly is comprised of a button head socket cap screw and wing clip. The end fastener provides a fixed, 90 degree, moderate-strength connection that is completely hidden. The winged tabs of the clip prevent the mating profile from rotating. This connection method requires two machining services; an end tap on the mounting profile and an access hole in the mating profile in order to reach the screw head.

The single tab end fastener assembly is comprised of a button head socket cap screw and a single tab wing clip. The single tab end fastener provides a fixed, 90 degree, moderate-strength connection that is completely hidden. The single winged tab is used for radius and angled profiles; the winged tab prevents the mating profile from rotating while the straight end is flush with the mounting profile. This connection method requires two machining services; an end tap on the mounting profile and an access hole in the mating profile in order to reach the screw head.

80/20 3389 Single Tab End Fastener Features: Provides a clean, hidden method of connecting closed-sided and quarter round profiles at 90° without the use of joining plates Winged tab of clip prevents mating profile from rotating The mounting profile requires an end tap; mating profile requires an access hole to reach the screw head
