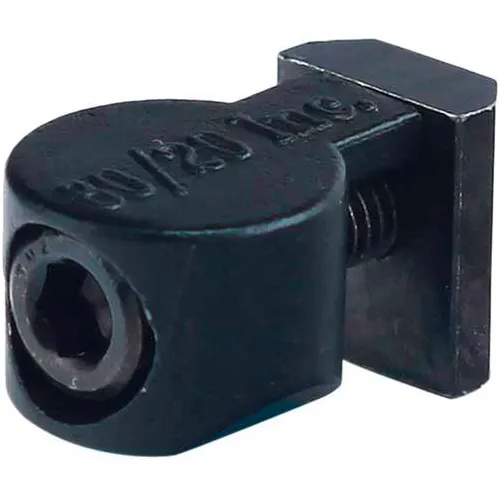

80/20 3392 Anchor Fastener

80/20 3343 Double End Fastener Features: Provides a clean, hidden method of connecting profiles at 90° without the use of joining plates Winged tabs of clip prevent mating profile from rotating Mounting profile requires an end tap; mating profile requires an access hole to reach the screw head

The standard anchor fastener assembly is comprised of a socket head cap screw, cam, and T-nut. It is one of the strongest internal fastening methods, offering a long-lasting connection. The anchor fastener provides infinite positioning along the mating profile's T-slot, allowing a large degree of adjustability. The anchor fastener provides 90 degree, flush, vibration resistant connections, especially convenient where space restrictions apply. This connection method requires a counterbore machining service on the mounting profile. Additional Information: Cams are available separately ...

The anchor fastener cam is commonly used with a socket head cap screw and T-nut to form custom anchor fastener assemblies. An anchor fastener connection method requires a counterbore machining service on the mounting profile.

80/20 3389 Single Tab End Fastener Features: Provides a clean, hidden method of connecting closed-sided and quarter round profiles at 90° without the use of joining plates Winged tab of clip prevents mating profile from rotating The mounting profile requires an end tap; mating profile requires an access hole to reach the screw head

The wing clip is commonly used with a button head socket cap screw to create custom end fastener assemblies. The winged tabs of the clip prevent the mating profile from rotating. An end fastener connection method requires two machining services; an end tap on the mounting profile and an access hole in the mating profile in order to reach the screw head.
