Baldor-Reliance

Model # :WBB390307

MPN #: EJMM4108T

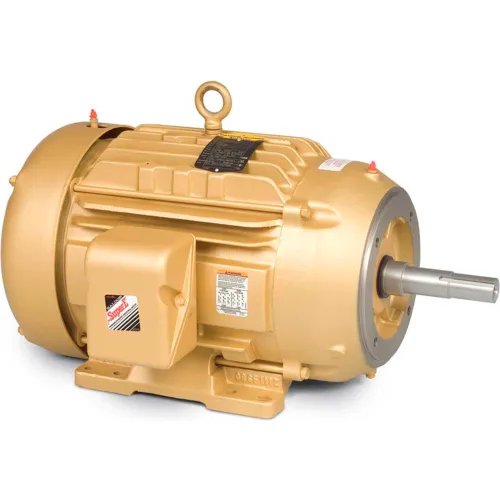

Baldor-Reliance Motor EJMM4108T, 30HP, 3520RPM, 3PH, 60HZ, 286JM, 1042M, TEFC, F

Product Description
Baldor-Reliance Motor, 30HP,3520RPM,3PH,60HZ,286JM,1042M,TEFC,F

Features:
  • Super-E Premium Efficient Motor
  • Heavy gauge steel frames
  • Moisture resistant ISR® (Inverter Spike Resistant) copper windings
  • Over-sized ball bearings with locked drive end construction to minimize endplay
  • Low-loss electrical grade lamination steel
  • Open drip-proof, close coupled pump motors are furnished with rodent screens at both ends
  • Three year warranty
Typical Applications:
Designed for operations where continuous or frequent duty is required. Usable for a wide variety of applications for circulating and transferring fluids. Mounting designed to support pump unit. Super-E motors are designed to conserve energy over extended time periods.

PRICE
$6,819.00

1
1
Ships in 2 Business Days
Add or Change Zip Code(s)
Easy online or call-in returns. Read return policy

Key Specifications

BrandBaldor-Reliance

Weights & Dimensions

Weight382 lbs
Dimension C28-5/8 in

Product Details

Power Factor90
Bearing Opp Drive End6309
Drive End FlangeC-Face
KVA CodeG
Motor RPM 60 Hertz3520 rpm
Mounting LocationRigid
Phase3
GreasePOLYREX EM
Manufacturers Part NumberEJMM4108T
EnclosureTEFC
Service Factor1.15
Bearing Drive End6312
RPM3,520 rpm
Insulation ClassF
Horsepower30 HP
Frame286JM
Hertz60 Hz
Design CodeB
Enclosure TypeTotally Enclosed
Voltage208 - 230, 460 V
Full Load Efficiency91.7
Full Load Amps72-66/33 FLA
Poles2
Ambient Temperature40 °C
RPM Range3001-3600 rpm

Compliance & Certifications

DOE Code010A
