Baldor-Reliance

Model # :WBB390401

MPN #: EJPM2333T

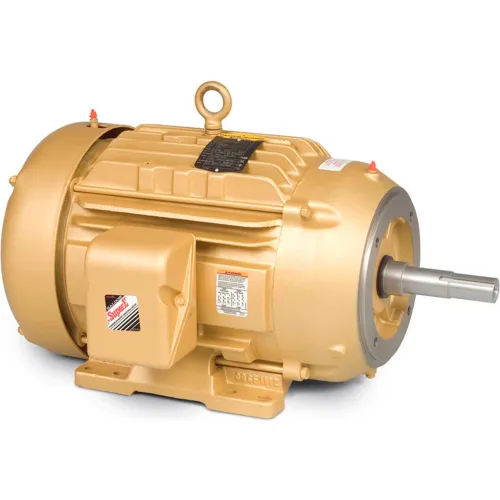

Baldor-Reliance Motor EJPM2333T, 15HP, 1765RPM, 3PH, 60HZ, 254JP, 0936M, TEFC, F

Product Description
Baldor-Reliance Motor, 15HP,1765RPM,3PH,60HZ,254JP,0936M,TEFC,F

Features:
  • Heavy gauge steel frames
  • Moisture resistant ISR® (Inverter Spike Resistant) copper windings
  • Over-sized ball bearings with locked drive end construction to minimize endplay
  • Low-loss electrical grade lamination steel
  • Open drip-proof, close coupled pump motors are furnished with rodent screens at both ends
Typical Applications:
Designed for a wide variety of applications for circulating and transferring fluids. Mounting designed to support pump unit.

PRICE
$4,079.00

1
1
Ships in 2 Business Days
Add or Change Zip Code(s)
Easy online or call-in returns. Read return policy

Key Specifications

BrandBaldor-Reliance

Weights & Dimensions

Weight255 lbs
Dimension C28-1/16 in

Product Details

Power Factor82
Bearing Opp Drive End6208
Drive End FlangeC-Face
KVA CodeH
Motor RPM 60 Hertz1765 rpm
Mounting LocationRigid
Phase3
Manufacturers Part NumberEJPM2333T
EnclosureTEFC
Service Factor1.15
Bearing Drive End6309
RPM1,765 rpm
Insulation ClassF
Horsepower15 HP
Frame254JP
Hertz60 Hz
Design CodeB
Amps @ 208V38.9 A
Enclosure TypeTotally Enclosed
Voltage208 - 230, 460 V
Full Load Efficiency92.4
Full Load Amps38.8-37/18.5 FLA
Poles4
Ambient Temperature40 °C
RPM Range1701-1800 rpm
