Baldor-Reliance

Model # :WBB390200

MPN #: EJPM2531T

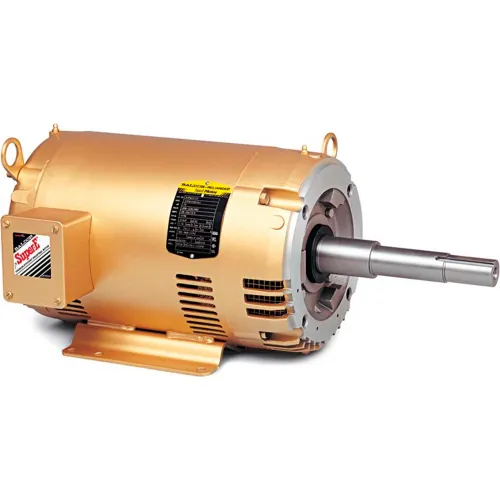

Baldor-Reliance Motor EJPM2531T, 25HP, 1760RPM, 3PH, 60HZ, 284JP, 4046M, OPSB, F

Product Description
Baldor-Reliance Motor, 25HP,1760RPM,3PH,60HZ,284JP,4046M,OPSB,F

Features:
  • Heavy gauge steel frames
  • Moisture resistant ISR® (Inverter Spike Resistant) copper windings
  • Over-sized ball bearings with locked drive end construction to minimize endplay
  • Low-loss electrical grade lamination steel
  • Open drip-proof, close coupled pump motors are furnished with rodent screens at both ends
Typical Applications:
Designed for a wide variety of applications for circulating and transferring fluids. Mounting designed to support pump unit.

PRICE
$5,009.00

1
1
Ships in 2 Business Days
Add or Change Zip Code(s)
Easy online or call-in returns. Read return policy

Key Specifications

BrandBaldor-Reliance

Weights & Dimensions

Weight330 lbs
Dimension C27-9/16 in

Product Details

Power Factor86
Bearing Opp Drive End6309
Drive End FlangeC-Face
KVA CodeG
Motor RPM 60 Hertz1760 rpm
Mounting LocationRigid
Phase3
GreasePOLYREX EM
Manufacturers Part NumberEJPM2531T
EnclosureOPSB
Service Factor1.15
Bearing Drive End6312
RPM1,760 rpm
Insulation ClassF
Horsepower25 HP
Frame284JP
Hertz60 Hz
Design CodeB
Enclosure TypeOpen/Drip Proof
Voltage230, 460 V
Full Load Efficiency93.6
Full Load Amps58/29 FLA
Poles4
Ambient Temperature40 °C
RPM Range1701-1800 rpm
