Baldor-Reliance

Model # :WBB390292

MPN #: EJPM3312T

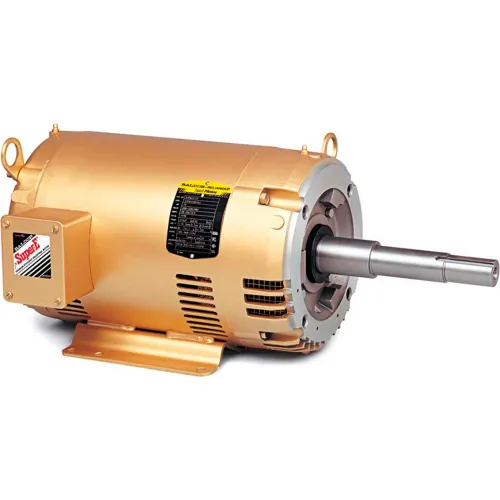

Baldor-Reliance Motor EJPM3312T, 10HP, 3500RPM, 3PH, 60HZ, 213JP, 3736M, OPSB, F

Product Description
Baldor-Reliance Motor, 10HP,3500RPM,3PH,60HZ,213JP,3736M,OPSB,F

Features:
  • Heavy gauge steel frames
  • Moisture resistant ISR® (Inverter Spike Resistant) copper windings
  • Over-sized ball bearings with locked drive end construction to minimize endplay
  • Low-loss electrical grade lamination steel
  • Open drip-proof, close coupled pump motors are furnished with rodent screens at both ends
Typical Applications:
Designed for a wide variety of applications for circulating and transferring fluids. Mounting designed to support pump unit.

PRICE
$2,589.00

1
1
Ships in 2 Business Days
Add or Change Zip Code(s)
Easy online or call-in returns. Read return policy

Key Specifications

BrandBaldor-Reliance

Weights & Dimensions

Weight129 lbs
Dimension C22-1/16 in

Product Details

Power Factor90
Bearing Opp Drive End6206
Drive End FlangeC-Face
KVA CodeJ
Motor RPM 60 Hertz3500 rpm
Mounting LocationRigid
Phase3
Manufacturers Part NumberEJPM3312T
EnclosureOPSB
Service Factor1.15
Bearing Drive End6309
RPM3,500 rpm
Insulation ClassB
Horsepower10 HP
Frame213JP
Hertz60 Hz
Design CodeA
Amps @ 208V24 A
Enclosure TypeOpen/Drip Proof
Voltage208 - 230, 460 V
Full Load Efficiency91.7
Full Load Amps24-23/11.5 FLA
Poles2
Ambient Temperature40 °C
RPM Range3001-3600 rpm
