Baldor-Reliance

Model # :WBB390385

MPN #: EJPM4106T

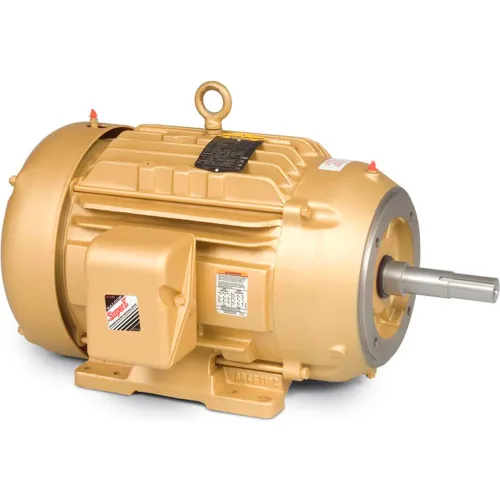

Baldor-Reliance Motor EJPM4106T, 20HP, 3510RPM, 3PH, 60HZ, 256JP, 0932M, TEFC, F

Product Description
Baldor-Reliance Motor, 20HP,3510RPM,3PH,60HZ,256JP,0932M,TEFC,F

Features:
  • Heavy gauge steel frames
  • Moisture resistant ISR® (Inverter Spike Resistant) copper windings
  • Over-sized ball bearings with locked drive end construction to minimize endplay
  • Low-loss electrical grade lamination steel
  • Open drip-proof, close coupled pump motors are furnished with rodent screens at both ends
Typical Applications:
Designed for a wide variety of applications for circulating and transferring fluids. Mounting designed to support pump unit.

PRICE
$4,755.00

1
1
Ships in 2 Business Days
Add or Change Zip Code(s)
Easy online or call-in returns. Read return policy

Key Specifications

BrandBaldor-Reliance

Weights & Dimensions

Weight265 lbs
Dimension C28-3/16 in

Product Details

Power Factor89
Bearing Opp Drive End6208
Drive End FlangeC-Face
KVA CodeH
Motor RPM 60 Hertz3510 rpm
Mounting LocationRigid
Phase3
Manufacturers Part NumberEJPM4106T
EnclosureTEFC
Service Factor1.15
Bearing Drive End6309
RPM3,510 rpm
Insulation ClassF
Horsepower20 HP
Frame256JP
Hertz60 Hz
Design CodeB
Enclosure TypeTotally Enclosed
Voltage208 - 230, 460 V
Full Load Efficiency91
Full Load Amps50-46/23 FLA
Poles2
Ambient Temperature40 °C
RPM Range3001-3600 rpm
