Features:
- Heavy gauge steel frame construction
- Corrosion resistant finish
- Ball bearings
- Suitable for mounting in any position
Many pumping systems where only single phase power is available.

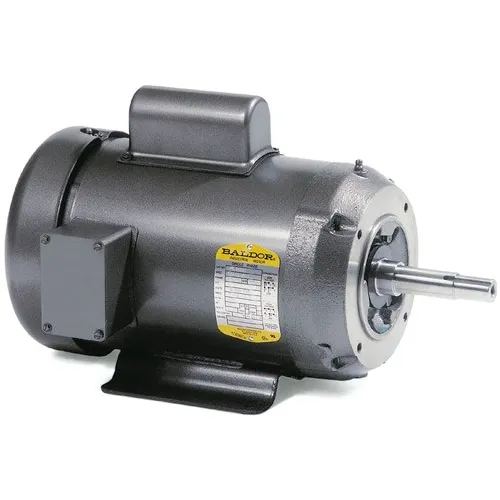

Baldor-Reliance Motor JML1508T, 5HP, 1725RPM, 1PH, 60HZ, 213JM, 3727L, OPSB, F1
Write a Review
|
Questions & Answers (0)
Product Description
Baldor-Reliance Motor, 5HP,1725RPM,1PH,60HZ,213JM,3727L,OPSB,F1
Features:
Many pumping systems where only single phase power is available.
Features:
Many pumping systems where only single phase power is available.
PRICE
$2,279.00
1
1
Ships in 2 Business Days
Add or Change Zip Code(s)
Easy online or call-in returns. Read return policy
Key Specifications
| Brand | Baldor-Reliance |
Weights & Dimensions
| Weight | 118 lbs |
| Dimension C | 18-3/16 in |
Product Details
| Power Factor | 78 |
| Bearing Opp Drive End | 6206 |
| Drive End Flange | C-Face |
| KVA Code | G |
| Motor RPM 60 Hertz | 1725 rpm |
| Mounting Location | Rigid |
| Phase | 1 |
| Manufacturers Part Number | JML1508T |
| Enclosure | OPSB |
| Service Factor | 1.15 |
| Bearing Drive End | 6309 |
| RPM | 1,725 rpm |
| Insulation Class | B |
| Horsepower | 5 HP |
| Frame | 213JM |
| Hertz | 60 Hz |
| Design Code | L |
| Enclosure Type | Open/Drip Proof |
| Voltage | 230 V |
| Full Load Efficiency | 77 |
| Full Load Amps | 27 FLA |
| Poles | 4 |
| Ambient Temperature | 40 °C |
| RPM Range | 1701-1800 rpm |
