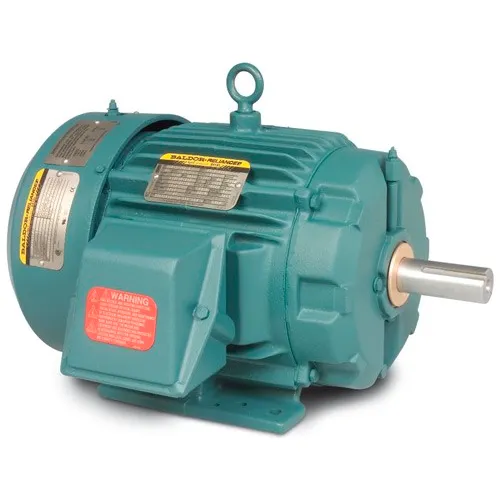

Baldor-Reliance Motor VECP82394T-4, 15HP, 3510RPM, 3PH, 60HZ, 254TC, 0934M, TEFC, F

Baldor-Reliance Motor, ... Features: Heavy gauge steel and cast iron frames Ball bearings ISR® (Inverter Spike Resistant®) copper windings Low-loss electrical grade lamination steel Three year warranty Typical Applications: Typical applications include operations where continuous or frequent duty is required. Super-E Motors are designed to conserve energy over extended time periods. Class F insulated, 1.15 service factor. Inverter rated per NEMA MG1 Part 31.4.4.2. Suitable for variable torque applications and constant torque speed range with properly sized and adjusted variable frequency ...

Baldor-Reliance Motor, 300HP,1785RPM,3PH,60HZ,449T,TEFC Features: Heavy gauge steel and cast iron frames Roller bearings for heavy belted loads (not suitable for coupled loads) ISR® (Inverter Spike Resistant®) copper windings Low-loss electrical grade lamination steel Three year warranty Typical Applications: Typical applications include operations where continuous or frequent duty is required. Super-E Motors are designed to conserve energy over extended time periods. Class F insulated, 1.15 service factor. Inverter rated per NEMA MG1 Part 31.4.4.2. Suitable for variable torque ...

Baldor-Reliance Motor, ... Features: 1.15 Service Factor Corrosion resistant epoxy finish Regreasable ball bearings Oversized rotatable cast iron conduit box Forsheda® shaft seal Moisture resistant copper windings Class F insulation Stainless steel nameplate and corrosion resistant harware Tropicalized Typical Applications: Typical applications include petro-chemical plants, mines, foundries, pulp and paper plants, waste management facilities, chemical plants, tropical climates and other processing industry applications requiring protection against corrosion caused by severe environmental ...

Baldor-Reliance Motor, ... Features: 1.15 Service Factor Corrosion resistant epoxy finish Regreasable ball bearings Oversized rotatable cast iron conduit box Forsheda® shaft seal Moisture resistant copper windings Class F insulation Stainless steel nameplate and corrosion resistant harware Tropicalized Typical Applications: Typical applications include petro-chemical plants, mines, foundries, pulp and paper plants, waste management facilities, chemical plants, tropical climates and other processing industry applications requiring protection against corrosion caused by severe environmental ...

Baldor-Reliance Motor, 15HP,1180RPM,3PH,60HZ,284T,TEFC,FOOT, Features: Built to 841XL design Upgraded electrical and mechanical design with NEMA Premium® efficient winding Inpro/Seal® VBX (thru 210 frame) VBXX bearing isolators on fan and drive end shaft extensions Epoxy paint provides IP56 enclosure Stainless breather drains Proprietary cast iron frames for reduced vibration and noise Terminal lugs on motor leads 5-year warranty Typical Applications: Petro-chemical, pulp and paper, cement, aggregate mining and other process industries requiring premium efficient motors designed, ...
