Big Joe

Model # :WB988022

MPN #: CB22-128

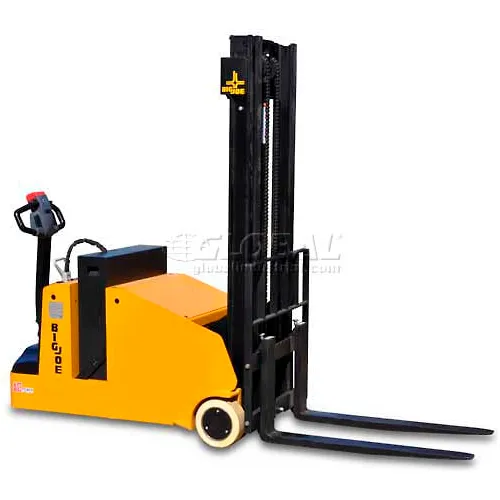

Big Joe® CB22 Fully Powered Counterbalanced Walkie Stacker 2200 Lb. 128" Lift

Product Description
Big Joe® FULLY POWERED COUNTERBALANCED STACKER

Counterbalanced Lift Truck is designed for applications where extended straddle legs or outriggers will interfere with loading or unloading.

Operator can easily approach mezzanines and racks with lower braces. Perfect for loading and unloading shipping containers or trucks since there are no stabilization legs to get in the way. Tight 56" turning radius eases maneuverability in confined aisles. 2.2KW lift motor raises loads 25 ft./min. and travels via 0.9KW AC drive motor at 3.1 mph loaded and 3.4 mph unloaded. 42"L x 4"W x 1-½" forks offer 24" load center and adjust from 8" to 28" O.D. Includes (4) 6V 224Ah maintenance-free batteries, battery discharge gauge and integral 25 amp 110V charger. Ergonomic handle controls speed and lift with left or right hand, and offers auto-reverse safety belly button switch. 2 Year Limited Warranty.

Dock required for Delivery.

PRICE
$18,999.00

This product will be restocked soon

Notify mewhen this product is back in stock
Out of stock, please check back soon.
Easy online or call-in returns. Read return policy

Key Specifications

Width35-13/16 in
BrandBig Joe
Distance Across Forks8 to 28 (adjustable) in

Weights & Dimensions

Height83-3/16 in
Lowered Height2 in
Raised Height128 in
Weight Capacity2200 lbs
Weight4532 lbs
Fork Length42 in
Fork Width4 in
Front Wheel Diameter9 Front, 8 Rear in
Travel Speed3.1 Loaded; 3.4 Unloaded mph
Lift Speed25 ft/min
Load Center24 in

Product Details

Length106 in
Assembly RequiredNo
Charger25 amp / 110V
MaterialSteel
Lift Motor2.2 KW
Manufacturers Part NumberCB22-128
Battery Type6 V / 224 Ah
PowerBattery Operated
TypeCounter Balanced
ColorYellow
Wheel TypePolyurethane
Duty Cycle per Charge4 - 6 Hours Intermittent Use (Approx. 75 Pallet Moves)
Number of Batteries4
Batteries(4) 6V / 224AH
Drive Motor0.9 KW kW

Warranty

Warranty2 yr
