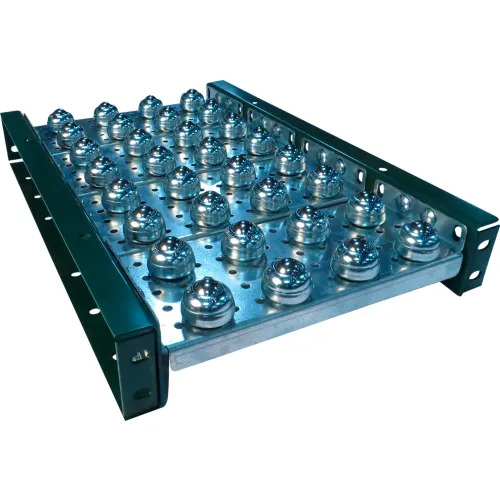

Ashland BTIT Ball Transfer Insert Table w/ Butt Plates, 13" Between Frame Width, 2'L, 3" Ball Center

The ball transfer table is used when products are required to be manually rotated or correctly positioned, such as a work station or other similar operation that requires quick, easy handling of the product. Ball Transfer Table is also used when more than two conveyor lines converge and packages must be transferred from one line to another. This product is non-cancelable and non-returnable. Need a customized system or solution? Please reach out to your Global Industrial sales representative and they can get you set up with a custom quote for your conveyor needs.

The Model BTI is a modular ball transfer insert assembly constructed of 12 ga. galvanized. Standard ball transfers are zinc plated carbon steel with a 75 lb. capacity per ball unit." The inserts are designed to install in 7F, 8F, 9F, 10F, and 11F frames of a corresponding BF, allowing for rollers be removed and inserts installed".

Available in case hardened carbon steel or stainless steel Imperfect thread to prevent damage to machine table Custom sizes & Tapped-thru hole available upon request

Ashland Conveyor 3' Ball Transfer Conveyor Table with 3" Center - 75 Lb. Cap. Ball transfer units are used where product must change direction or at an intersection of two conveyors. Table assemblies are designed to match-up with 1.9" diameter roller conveyor frames. Ball capacity of 75 lbs. each. Need a customized system or solution? Please reach out to your Global Industrial sales representative and they can get you set up with a custom quote for your conveyor needs.

Use when products are required to be manually rotated or correctly positioned. Ideal for workstations that require quick, easy handling of a product. Also use when more than 2 conveyor lines converge and packages must be transferred from one line to another. Compatible with 1.9" diameter roller conveyors. 1" diameter stud mount ball casters are set in 1-1/2"W x 3-1/2"H x 10 gauge galvanized steel frame. 65 lb. capacity per ball. How To Order: 1. Determine the ball table size required. Overall width is determined by adding the Between Frame Width and two 1-1/2" frame sides. 2. Determine ...
