Campbell Hausfeld

Model # :WBB766463

MPN #: CE7001

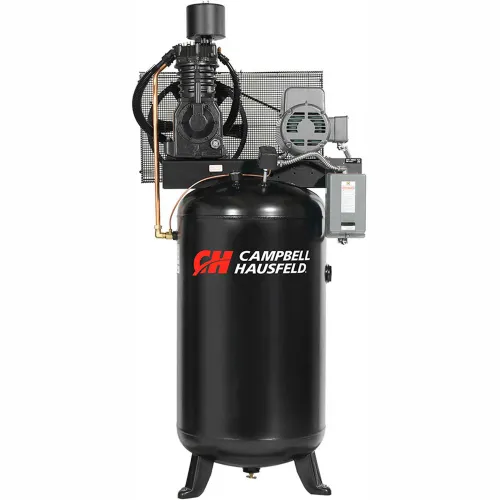

Campbell Hausfeld® CE7001,7.5 HP,Two-Stage Comp.,80 Gal,Vert,175 PSI,25 CFM,3-PH 208-230/460V

Product Description
Campbell Hausfeld® CE7001,7.5 HP,Two-Stage Comp.,80 Gal,Vert,175 PSI,25 CFM,3-PH 208-230/460V

Features
  • Designed and constructed for heavy duty commercial and industrial applications.
  • Delivers up to 15,000 hours of pump life.
  • Cast Iron Two-Stage Pump
  • Stainless steel valves
  • Ductile iron crankshaft
  • Oil sight glass
  • Low pump RPM
  • Precision balanced flywheel


Warranty Disclaimer

  • Warranty coverage for Campbell Hausfeld only applies to the United States and Canada
  • Products sold outside of the United States and Canada will void manufacturer's warranty


PRICE
$3,599.00

1
1
Ships in 7 Business Days
Add or Change Zip Code(s)
Easy online or call-in returns. Read return policy

Key Specifications

Width45 in
BrandCampbell Hausfeld

Weights & Dimensions

Height83 in
Weight540 lbs
Tank Size80 gal
Tank Outlet3/4"

Product Details

Length35 in
Oil TypeOil Lubricated
Air DryerNo
Oil SystemSplash Lubricated
Pump DriveBelt Drive
Pump MaterialCast Iron
Tank Drain ValveAutomatic
Max PSI175 psi
Phase3
Tank OrientationVertical
Oil Sight GlassYes
Manufacturers Part NumberCE7001
Pump TypeTwo-Stage
Low Oil ShutoffNo
CFM25 CFM
Horsepower7.5 HP
ColorBlack
After CoolerYes
Voltage208-230/460 V
Air FilterNo

Warranty

Warranty3 yr

Compliance & Certifications

CertificationsASME Certified
