Finish Thompson

Model # :WBB1309871

MPN #: DB6P-M224

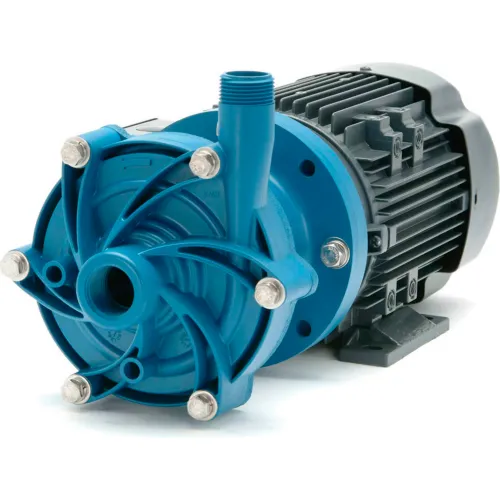

Finish Thompson DB6P-M224 Polypropylene Mag-Drive Pump 1/3HP,115/208-230V, 1 Phase,39 GPM

Product Description
Closed coupled, flooded suction, sealless mag-drive design eliminates the need for mechanical seals. Will handle Acids, Alkalis & Plating solutions without leakage.

PRICE
$1,125.00

1
1
Ships in 5 Business Days
Add or Change Zip Code(s)
Easy online or call-in returns. Read return policy

Key Specifications

Width7-1/2 in
BrandFinish Thompson

Weights & Dimensions

Height8-5/16 in
Inlet Connection1 in
Discharge Connection Size1 in

Product Details

Length17-7/16 in
Rotations per Minute3450 rpm
Gallons per Minute39.0 gal/min
Motor TypeTEFC Induction
Gallons per Minute @ Bep25 gal/min
Phase1
Discharge Connection TypeMNPT
Max Exit Pressure13.0 psi
Manufacturers Part NumberDB6P-M224
Temperature of Liquid Pumped180
TypeMagnetic Drive Pump
Horsepower1/3 HP
Amperage2.7/2.85/5.7 A
Hertz60 Hz
Voltage115/230 V
Gallons per Hour2340 gal/hr
Inlet Connection TypeFNPT
Housing MaterialPolypropylene

Warranty

Warranty5 yr
