The Polarized RIB series is equivalent to the standard RIB series except for the coil which is polarized. We are currently offering nine polarized relays, most of which have a similar non-polarized counterpart. The "FA" in the model name stands for Fire Alarm. These relays are designed for operation in systems that require supervision from controllers and utilize end-of-line resistors. The relay can also be operated from A/C voltage (non-polarized) if desired.

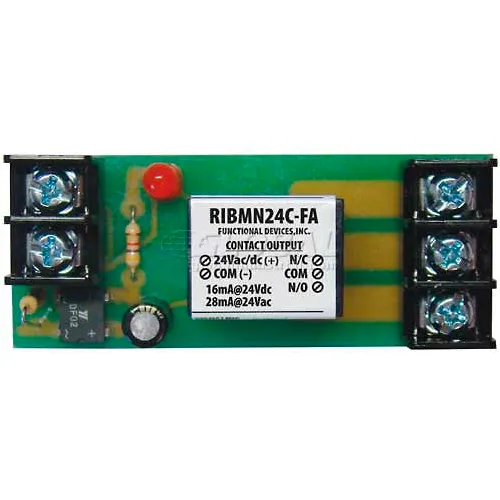

RIB® Enclosed Polarized Track Mount Relay RIBMN24C-FA, 2.75", 15A, SPDT, 24VAC/VDC
Write a Review
|
Questions & Answers (0)
Product Description
PRICE
$41.95
1
1
Ships in 20 Business Days
Add or Change Zip Code(s)
Easy online or call-in returns. Read return policy
Key Specifications
| Width | 2.75 in |
| Brand | RIB |
Weights & Dimensions
| Height | 1.75 in |
| Wire Size | 16 in |
Product Details
| Length | 1.1 in |
| Number of Relays | 1 |
| Amperage | 15 A |
| Humidity Range | 5 To 95 Percent (Noncondensing) |
| Operating Temperature | -30° To 140°F |
| Contact Type | SPDT |
| Expected Relay Life | 10 Million Cycles Minimum Mechanical |
| Voltage | 24VAC/DC V |
| Description | Enclosed Polarized Track Mount Relay |
| Manufacturers Part Number | RIBMN24C-FA |
| Wire Rating | 600V |
Warranty
| Warranty | 1 yr |
Compliance & Certifications
| Certifications | UL/cUL |
