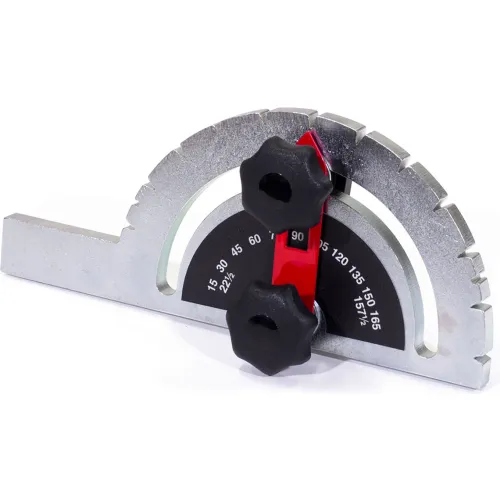

The Fabricator's Protractor increases user accuracy on the Punch and Flat Bar Shear Workstations. Designed to guide your workpiece and gauged at 15° increments through 180°, this protractor features a straight edge and reversible design to accommodate both right and left handed operators. A must have for an operator looking for precise, angled shearing.
Share
Spec Sheet
Edwards® Fabricator's Protractor
Write a Review
|
Questions & Answers (0)
Product Description
PRICE
$70.95
1
1
Ships in 45 Business Days
Add or Change Zip Code(s)
Easy online or call-in returns. Read return policy
Specifications
Key Specifications
| Width | 7 in |
| Brand | Edwards |
Weights & Dimensions
| Height | 5 in |
| Weight | 4 lbs |
Product Details
| Length | 9 |
| Type | Fabricator's Protractor |
| Country of Origin | Made in USA |
| Description | Fabricator's Protractor |
| Series | AC |
| Manufacturers Part Number | ED9-AC1017 |
| Style Type | Ironworker |
