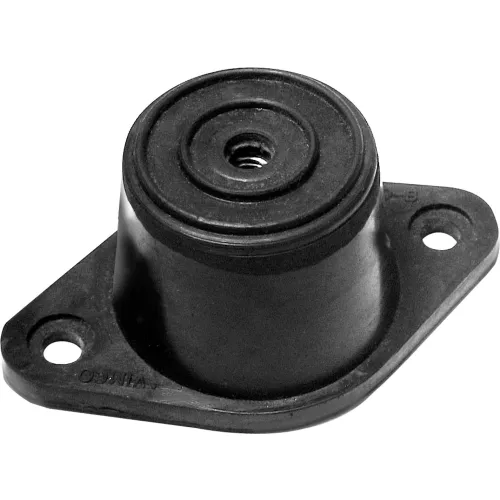

Vibra Systems FMD-8 - Compression Mount 750 Lbs. Max Load 1/2" Deflection

These mounts are ideal for a wide range of installations where simple and precise leveling is required. Diamond cell neoprene pads provide a firm grip to the floor. The VMT mount is self - aligning without sacrifice to stability and compensates for slightly uneven floors. A neoprene pad fits tight in a cast iron cover cavity preventing separation the of pad and cover which eliminates reliance on adhesives. A load range of up to 12000 lbs. with the leveling feature makes this mount very popular for numerous industrial applications. Features: Controls vibration and noise Resistant to oil ...

Steel springs reduce vibration transmission most efficiently as performance improves with larger deflections. Minimum deflection is 0.75" which increases with heavier loadings. Spring deflections are 2 - 6 times higher than the rubber products. IMF Unhoused Simple Spring Mount works best for indoor applications on lightweight equipment that does not have to be completely level and does not need to be bolted down. Max Load 130-200 LBS. 5-3/4"L x 2-1/8"W x 4-1/2"H Overall Dimensions.

Vibra Systems VSCM-4 - Plated Cup Mount 2100 Max Load Lbs Plated Steel VSCM / CMSS Compression-shear cup mount with base provides excellent protection against vibration and shock. Due to this mount's ability to provide isolation to both vertical and horizontal forces it is used in a wide variety of industrial applications. Recommended applications include: Industrial machinery, centrifuges, numerical control equipment, blowers, railroad equipment, converters, transformers, combustion engines, motors, control panels, marine and industrial generator sets, HVAC, pumps, factory production ...

HSA series spring hangers are large diameter steel springs housed in rectangular steel housings. Assembly incorporates dual (steel & elastomer) washers for uniform load distribution and high frequency isolation. Springs have a 50% additional travel to solid load as per the ASRAE recommendations. Spring hangers are used for hanging fan coil units, air handling units, fans, pipes, and ducts. These spring hangers are normally used for critical areas where noise and vibration both need to be controlled.

Type "Y-1" series mounts with one inch deflection solve troublesome vibration problems. These mounts are preferred over most rubber mounts due to the high static deflection of the springs. "Y-1" type spring mounts are designed for noise and vibration control applications in critical areas on concrete or wooden floors. The Y-1 mount features a three piece cast iron housing for the spring. The mounts are provided with slotted mounting holes and a non-skid elastomeric acoustic pad on the base for bolting to the floor. Resilient elastomeric snubbers on the inner panel prevent metal to metal ...
