Applications:
- Fans
- Pumps
- Blowers
- Conveyors
- Compressors
- Industrial machines
- Other general purpose applications

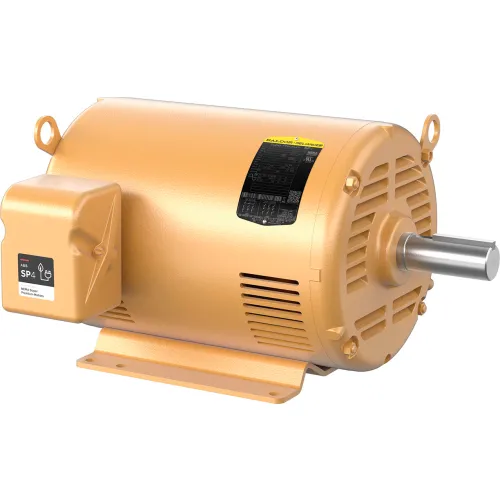

Baldor-Reliance Motor 20HP, 1775RPM, 3PH, 60HZ, 256T, 3976M, OPSB, F1
Write a Review
|
Questions & Answers (0)
Product Description
General purpose, three phase, open drip proof, 20HP, 1775RPM, 3PH, 60HZ, 256T, 3976M, OPSB, F1230/460, foot mounted.
Applications:
Applications:
PRICE
$3,515.00
1
1
Ships in 5 Business Days
Add or Change Zip Code(s)
Easy online or call-in returns. Read return policy
Key Specifications
| Brand | Baldor-Reliance |
Weights & Dimensions
| Weight | 436 |
| Dimension C | 25-3/16 in |
Product Details
| Power Factor | 84 |
| Bearing Opp Drive End | 6208 |
| KVA Code | J |
| Motor RPM 60 Hertz | 1800 rpm |
| Mounting Location | Rigid |
| Phase | 3 |
| Manufacturers Part Number | SPM2515T |
| Enclosure | OPSB |
| Service Factor | 1.15 |
| Bearing Drive End | 6309 |
| Insulation Class | F |
| Horsepower | 20 HP |
| Frame | 256T |
| Hertz | 60 Hz |
| Design Code | A |
| Voltage | 230/460 V |
| Full Load Efficiency | 94.1 |
| Nameplate RPM | 1775 rpm |
| Full Load Amps | 24 FLA |
| Duty | Continuous |
| Poles | 4 |
| Ambient Temperature | 40 °C |
