Applications:
- Grain handling
- Chemical, oil & gas
- Pulp & paper, forest products
- Metals & foundries
- Cement, aggregate & above ground mining
- Food processing
- Power generation
- Water & wastewater treatment

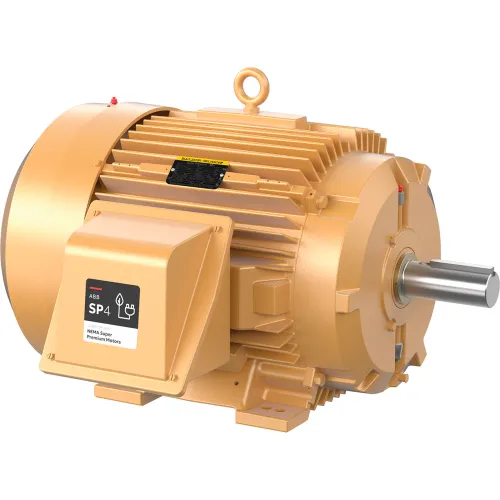

Baldor-Reliance Motor 75HP, 1780RPM, 3PH, 60HZ, 365TS, A3684M, TEFC
Write a Review
|
Questions & Answers (0)
Product Description
Severe duty, three phase, totally enclosed, 75HP, 1780RPM, 3PH, 60HZ, 365TS, A3684M, TEFC230/460.
Applications:
Applications:
PRICE
$23,259.00
1
1
Ships in 5 Business Days
Add or Change Zip Code(s)
Easy online or call-in returns. Read return policy
Key Specifications
| Brand | Baldor-Reliance |
Weights & Dimensions
| Weight | 958 |
| Dimension C | 31-3/8 in |
Product Details
| Power Factor | 82 |
| Bearing Opp Drive End | 65BC03J30X |
| KVA Code | J |
| Motor RPM 60 Hertz | 1800 rpm |
| Mounting Location | Rigid |
| Phase | 3 |
| Manufacturers Part Number | SPM4316TS |
| Enclosure | TEFC |
| Service Factor | 1.15 |
| Bearing Drive End | 65BC03J30X |
| Insulation Class | H |
| Horsepower | 75 HP |
| Frame | 365TS |
| Hertz | 60 Hz |
| Design Code | A |
| Enclosure Type | Totally Enclosed |
| Voltage | 230/460 V |
| Full Load Efficiency | 95.8 |
| Nameplate RPM | 1780 rpm |
| Full Load Amps | 88 FLA |
| Duty | Continuous |
| Poles | 4 |
| Ambient Temperature | 40 °C |
