Baldor-Reliance

Model # :WBB3202095

MPN #: SPM4313TS

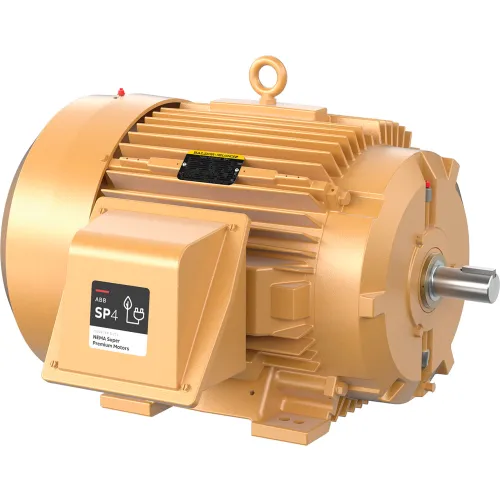

Baldor-Reliance Motor 75HP, 3555RPM, 3PH, 60HZ, 365TS, A36068M, TEFC

Product Description
Severe duty, three phase, totally enclosed, 75HP, 3555RPM, 3PH, 60HZ, 365TS, A36068M, TEFC230/460.

Applications:
  • Grain handling
  • Chemical, oil & gas
  • Pulp & paper, forest products
  • Metals & foundries
  • Cement, aggregate & above ground mining
  • Food processing
  • Power generation
  • Water & wastewater treatment


PRICE
$23,259.00

1
1
Ships in 5 Business Days
Add or Change Zip Code(s)
Easy online or call-in returns. Read return policy

Key Specifications

BrandBaldor-Reliance

Weights & Dimensions

Weight1005
Dimension C31-3/8 in

Product Details

Power Factor91
Bearing Opp Drive End65BC03J30X
KVA CodeG
Motor RPM 60 Hertz3600 rpm
Mounting LocationRigid
Phase3
Manufacturers Part NumberSPM4313TS
EnclosureTEFC
Service Factor1
Bearing Drive End65BC03J30X
Insulation ClassF
Horsepower75 HP
Frame365TS
Hertz60 Hz
Design CodeB
Enclosure TypeTotally Enclosed
Voltage230/460 V
Full Load Efficiency95
Nameplate RPM3555 rpm
Full Load Amps80.7 FLA
DutyContinuous
Poles2
Ambient Temperature40 °C
