2.75" Track Mount 4 Output Field Adjustable Staging Threshold Relay Module with 24 Vac/dc Power Input and 0-10 Vdc Control Input. Control four relay outputs with one (0-10 Vdc) analog signal from controller or thermostat. Has the capability to set desired ON and OFF voltages for each relay. Has no pots to adjust. No need for volt meter for setup. On board field selectabledigital display.

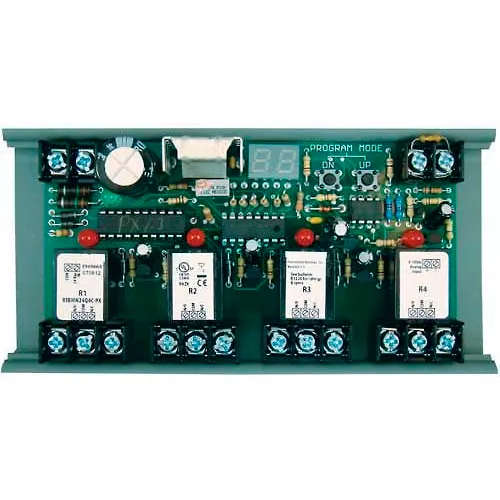

RIB® Panel I/O Expander RIBMN24Q4C-PX, 2.75", 15A, 4-SPDT, 24VAC/DC, 0-10VDC Control W/MT212-6
Write a Review
|
Questions & Answers (0)
Product Description
PRICE
$155.95
1
1
Ships in 7 Business Days
Add or Change Zip Code(s)
Easy online or call-in returns. Read return policy
Key Specifications
| Width | 2.75 in |
| Brand | RIB |
Weights & Dimensions
| Height | 1.75 in |
Product Details
| Length | 4.95 in |
| Number of Relays | 4 |
| Amperage | 15 A |
| Humidity Range | 5 To 95 Percent (Noncondensing) |
| Operating Temperature | -30° To 140°F |
| Contact Type | 4 SPDT |
| Expected Relay Life | 10 Million Cycles Minimum Mechanical |
| Voltage | 24VAC/DC, 0-10VDC V |
| Description | Panel I/O Expander |
| Manufacturers Part Number | RIBMN24Q4C-PX |
Warranty
| Warranty | 1 yr |
Compliance & Certifications
| Certifications | UL/cUL |
