Vestil

Model # :WB988812

MPN #: S-CB-62

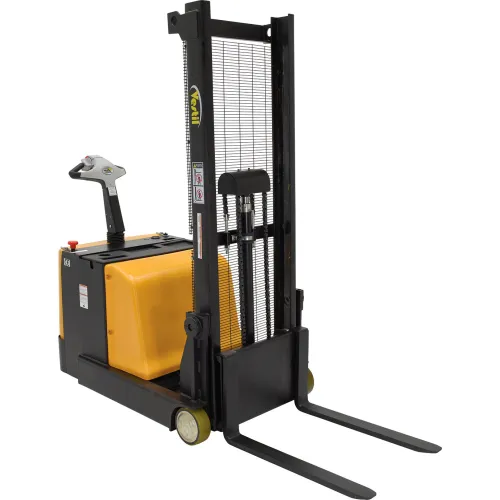

Vestil Fully-Powered Counter Balanced Stacker, 1000 Lb. Capacity

Product Description
FULLY POWERED COUNTER BALANCED STACKER
Counter Balance Design is ideal for Die Loading and Machine Feeding. This Lift Truck is perfect for approaching racks and trucks, as there are no outriggers or straddle legs that would obstruct a close approach. High-torque 24V DC 0.7 KW drive and 2.0 KW lift motors offer 3-4 hours of operation at full charge or 8 hours when used intermittently. Ergonomic handle features a throttle with an infinite adjustment of forward/reverse speeds, lift/lower controls, auto-reverse safety belly button switch and horn. Counter balanced Stacker has an electromagnetic disc brake with an automatic dead-man feature that activates when the user releases the handle. Truck includes (2) 12V 95AH lead acid deep cycle batteries, integral battery charger and battery level gauge. 30"L x 3-¼"W forks offer 15" load center and adjust from 6-¼" to 23-½" O.D. Stacker rolls smoothly on 10" dia. polyurethane steer and 6-¼" dia. polyurethane load wheels. 90 Day Limited Warranty.Dock required for Delivery.
PRICE
$11,549.00

1
1

Bulk Pricing

Quantity
Pricing
Buy 1 unit
11549.00
Buy 2 units - 3 units
10449.00Save $1100.00 (10%)
Buy 4+ units
10119.00Save $1430.00 (12%)
Ships in 10 Business Days
Add or Change Zip Code(s)
Easy online or call-in returns. Read return policy

Key Specifications

Width33 in
BrandVestil
Distance Across Forks6-1/4 to 23-1/2 (adjustable) in

Weights & Dimensions

Height82 in
Lowered Height2 in
Raised Height62 in
Weight Capacity1000 lbs
Weight1697 lbs
Fork Length30 in
Fork Width3-1/4 in
Front Wheel Diameter6-1/4 Front; 10 Rear in
Travel Speed3.2 mph
Lift Speed20 ft/min
Load Center15 in
Turning Radius44-1/2 °

Product Details

Length78 in
Assembly RequiredNo
Charger15 amp / 120V
Mast StyleNon-Telescopic
MaterialSteel
Lift Motor2.0 KW
Manufacturers Part NumberS-CB-62
Battery Type12 V / 95 Ah
PowerBattery Operated
TypeCounter Balanced
ColorYellow
Wheel TypePolyurethane
Duty Cycle per Charge3 to 4 Hours; 8 Hours Intermittent Use
Number of Batteries2
Batteries(2) 12V / 95AH
Drive Motor0.7 KW kW

Warranty

Warranty90 days
