Model # :WB988134

MPN #: TMS-20-DC

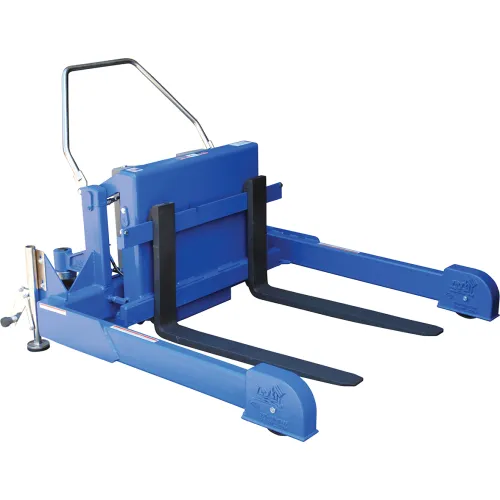

Vestil Tilt Master Elec. Straddle Pallet & Container Tilter, 2000 lb. Cap, 57-1/4"W x 35-1/2"L Forks

Product Description
Tilt Master 12V DC STRADDLE TILTER

Tilts Products from Ground Level to a Comfortable Operator Working Height.

Lift and position filled tote boxes, baskets or pallets without the need of a fork truck or lift table. This 90° tilter will transport completed products from work station to work station with ease, and doubles as a pallet truck and a portable tilt table. Straddle design and adjustable width forged steel forks allow the unit to be used with virtually any kind of container, pallet or skid. Tilter features a 12V DC powered lifting motor and a push button hand control with 8' coiled cord for maximum efficiency. On-board 110V AC battery charger is standard. Mobile Tilter has a thin profile to allow the operator to get as close to the load as possible and is equipped with a floor lock for stationary positioning. Folding ergonomic handle has dual steering grips for quick and easy maneuverability. Rolls smoothly on 2 swivel and 2 rigid polyurethane casters. All steel construction features a durable blue enamel finish. 1 Year Limited Warranty.

PRICE
$5,569.00

1
1
Ships in 25 Business Days
Add or Change Zip Code(s)
Easy online or call-in returns. Read return policy

Key Specifications

Width57-1/4 in
Distance Between Forks28-1/2 in
Distance Across Forks36-1/2 in

Weights & Dimensions

Height29-1/4 in
Lowered Height3 in
Raised Height71-5/8 in
Weight Capacity2000 lbs
Weight840 lbs
Fork Length35-1/2 in
Fork Width4 in
Operator Reach13-1/2 in
Fork Adjustment1/2 - 29-1/2 in

Product Details

Length72-3/4 in
Assembly RequiredNo
Min Tile Angle Degrees0 °
MaterialSteel
Lift Time12 Seconds
OperationElectric
Manufacturers Part NumberTMS-20-DC
Max Tilt Angle Degrees90 °
Battery TypeLithium Ion
TypeElectric Powered Pallet & Container Tilter
Wheel TypeSolid
Load Wheel MaterialPolyurethane
Voltage12 V
