Heavy-duty plate clamps are designed to vertically lift and turn plate material. These lifting clamps include a pivoting bail for versatile, smooth operation and automatic serrated hardened steel pads and cams. Clamps feature a drop-forged steel case for maximum strength. Meets ASME B30.20 specifications.Note: Not designed to use on stainless steel or aluminum plates. For use with materials with a surface hardness to 30 RC (300 HB).
Share
Spec Sheet

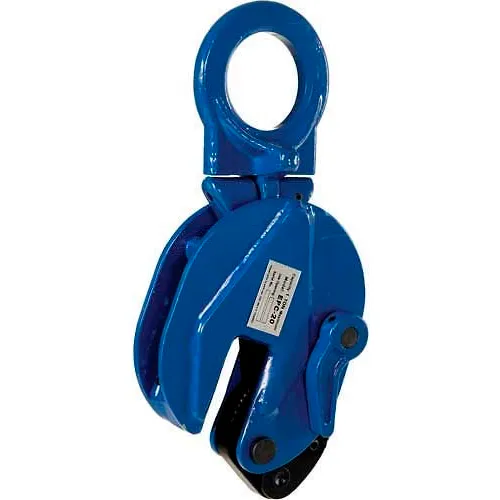

Vertical Plate Clamp Lifting Attachment EPC-20 2000 Lb. Capacity
(2)
|
Questions & Answers (0)
Product Description
PRICE
$272.95
1
1
Bulk Pricing
Quantity
Pricing
Buy 1 unit - 2 units
272.95
Buy 3 units - 10 units
249.95Save $23.00 (8%)
Buy 11+ units
239.95Save $33.00 (12%)
Ships in 10 Business Days
Add or Change Zip Code(s)
Easy online or call-in returns. Read return policy
Specifications
Key Specifications
| Brand | Vestil |
Weights & Dimensions
| Weight Capacity | 2000 lbs |
| Weight | 18 lbs |
| Throat Depth | 2.9 in |
| Max Plate Thickness | 0.75 in |
| Bail Opening | 2.3 in |
Product Details
| Assembly Required | No |
| Type | Vertical |
| Material | Steel |
| Manufacturers Part Number | EPC-20 |
