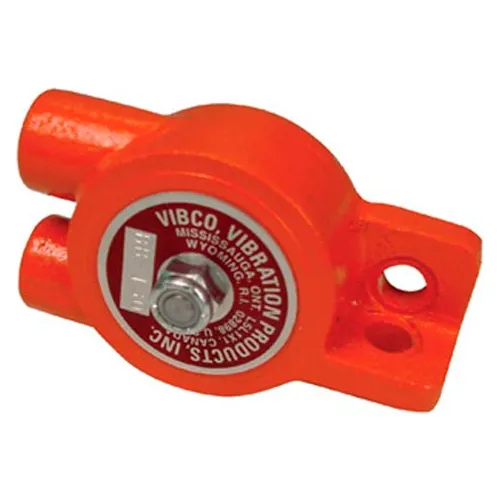

Vibco Silent Pneumatic Turbine Vibrator - BBS-130

VS series Silent Turbine Vibrator with built in muffler for High Temperature Applications, 350° F max. (180° C). Graphite Impregnated Bearings. 7200 VPM, 10.5 CFM, @ 80 PSI, with 500 lbs. of force. No lubrication required. Factory recommended filter regulator for optimum performance. Factory recommended filter regulator for optimum life and performance.

BBS series are dual mount Silent Turbine Vibrators, designed for applications requiring small to medium amounts of vibration. No lubrication required. Threaded exhaust port allows for porting air to remote location if necessary. 80 PSI max. operating pressure, 9000 VPM, at 7 CFM, with 160 lbs of force. 67 dB. A filter regulator is recommended for optimum life & performance. Exhaust mufflers are available for quieter operation.

BVS series Silent Pneumatic Turbine Vibrator. Threaded exhaust port. Cast iron housing standard (Aluminum available). 6800 VPM, 10 CFM, @ 80 PSI, with 600 lbs of force. No lubrication required. Factory recommended filter regulator for optimum performance.

VS series Silent Pneumatic Turbine Vibrator. High Speed, quick starting version. Built in exhaust muffler. Cast iron housing standard (Aluminum available). 6800 VPM, 11 CFM, @ 60 PSI, with 600 lbs of force, continuous duty. Intermittent duty to 80 PSI maximum. No lubrication required Factory recommended filter regulator for optimum performance.

VS series are foot mount Silent Turbine Vibrators with built in exhaust muffler, designed for applications requiring medium amounts of vibration. 80 PSI max. operating pressure, 4500 VPM, at 21 CFM, with 900 lbs of force. 77 dB. No lubrication required A filter regulator is recommended for optimum life & performance.
