Baldor-Reliance

Model # :WBB390484

MPN #: EJMM2513T

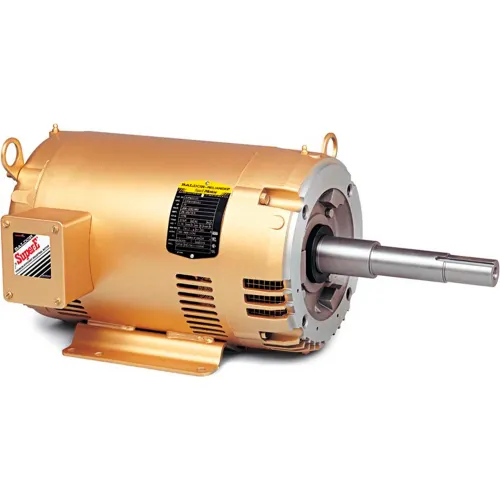

Baldor-Reliance Motor EJMM2513T, 15HP, 1765RPM, 3PH, 60HZ, 254JM, 3938M, OPSB, F

Product Description
Baldor-Reliance Motor, 15HP,1765RPM,3PH,60HZ,254JM,3938M,OPSB,F

Features:
  • Super-E Premium Efficient Motor
  • Heavy gauge steel frames
  • Moisture resistant ISR® (Inverter Spike Resistant) copper windings
  • Over-sized ball bearings with locked drive end construction to minimize endplay
  • Low-loss electrical grade lamination steel
  • Open drip-proof, close coupled pump motors are furnished with rodent screens at both ends
  • Three year warranty
Typical Applications:
Designed for operations where continuous or frequent duty is required. Usable for a wide variety of applications for circulating and transferring fluids. Mounting designed to support pump unit. Super-E motors are designed to conserve energy over extended time periods.

PRICE
$3,149.00

1
1
Ships within 1 Business Day
Add or Change Zip Code(s)
Easy online or call-in returns. Read return policy

Key Specifications

BrandBaldor-Reliance

Weights & Dimensions

Weight234 lbs
Dimension C23-3/16 in

Product Details

Power Factor86
Bearing Opp Drive End6208
Drive End FlangeC-Face
KVA CodeG
Motor RPM 60 Hertz1765 rpm
Mounting LocationRigid
Phase3
Manufacturers Part NumberEJMM2513T
EnclosureOPSB
Service Factor1.15
Bearing Drive End6309
RPM1,765 rpm
Insulation ClassF
Horsepower15 HP
Frame254JM
Hertz60 Hz
Design CodeB
Amps @ 208V37.4 A
Enclosure TypeOpen/Drip Proof
Voltage230, 460 V
Full Load Efficiency93
Full Load Amps35.4/17.7 FLA
Poles4
Ambient Temperature40 °C
RPM Range1701-1800 rpm
