Baldor-Reliance

Model # :WBB390498

MPN #: EJPM2515T

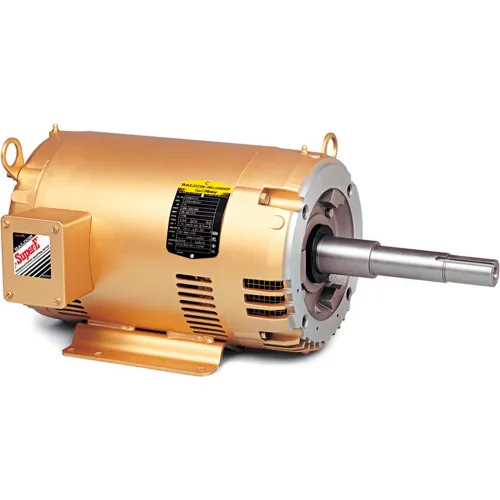

Baldor-Reliance Motor EJPM2515T, 20HP, 1765RPM, 3PH, 60HZ, 256JP, 3944M, OPSB, F

Product Description
Baldor-Reliance Motor, 20HP,1765RPM,3PH,60HZ,256JP,3944M,OPSB,F

Features:
  • Heavy gauge steel frames
  • Moisture resistant ISR® (Inverter Spike Resistant) copper windings
  • Over-sized ball bearings with locked drive end construction to minimize endplay
  • Low-loss electrical grade lamination steel
  • Open drip-proof, close coupled pump motors are furnished with rodent screens at both ends
Typical Applications:
Designed for a wide variety of applications for circulating and transferring fluids. Mounting designed to support pump unit.

PRICE
$3,979.00

1
1
Ships in 2 Business Days
Add or Change Zip Code(s)
Easy online or call-in returns. Read return policy

Key Specifications

BrandBaldor-Reliance

Weights & Dimensions

Weight234 lbs
Dimension C26-1/16 in

Product Details

Power Factor86
Bearing Opp Drive End6208
Drive End FlangeC-Face
KVA CodeH
Motor RPM 60 Hertz1765 rpm
Mounting LocationRigid
Phase3
Manufacturers Part NumberEJPM2515T
EnclosureOPSB
Service Factor1.15
Bearing Drive End6309
RPM1,765 rpm
Insulation ClassF
Horsepower20 HP
Frame256JP
Hertz60 Hz
Design CodeB
Amps @ 208V49.4 A
Enclosure TypeOpen/Drip Proof
Voltage230, 460 V
Full Load Efficiency93
Full Load Amps47/23.5 FLA
Poles4
Ambient Temperature40 °C
RPM Range1701-1800 rpm
