Baldor-Reliance

Model # :WBB390499

MPN #: EJPM2516T

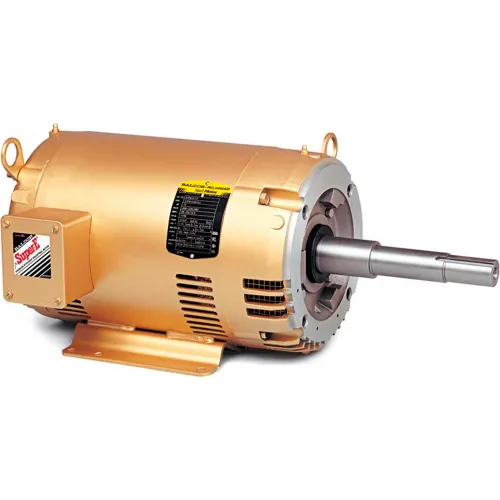

Baldor-Reliance Motor EJPM2516T, 25HP, 3530RPM, 3PH, 60HZ, 256JP, 3942M, OPSB, F

Product Description
Baldor-Reliance Motor, 25HP,3530RPM,3PH,60HZ,256JP,3942M,OPSB,F

Features:
  • Heavy gauge steel frames
  • Moisture resistant ISR® (Inverter Spike Resistant) copper windings
  • Over-sized ball bearings with locked drive end construction to minimize endplay
  • Low-loss electrical grade lamination steel
  • Open drip-proof, close coupled pump motors are furnished with rodent screens at both ends
Typical Applications:
Designed for a wide variety of applications for circulating and transferring fluids. Mounting designed to support pump unit.

PRICE
$4,959.00

1
1
Ships within 1 Business Day
Add or Change Zip Code(s)
Easy online or call-in returns. Read return policy

Key Specifications

BrandBaldor-Reliance

Weights & Dimensions

Weight252 lbs
Dimension C26-1/16 in

Product Details

Power Factor87
Bearing Opp Drive End6208
Drive End FlangeC-Face
KVA CodeH
Motor RPM 60 Hertz3530 rpm
Mounting LocationRigid
Phase3
Manufacturers Part NumberEJPM2516T
EnclosureOPSB
Service Factor1.15
Bearing Drive End6309
RPM3,530 rpm
Insulation ClassF
Horsepower25 HP
Frame256JP
Hertz60 Hz
Design CodeB
Enclosure TypeOpen/Drip Proof
Voltage230, 460 V
Full Load Efficiency92.4
Full Load Amps58/29 FLA
Poles2
Ambient Temperature40 °C
RPM Range3001-3600 rpm
