Baldor-Reliance

Model # :WBB390386

MPN #: EJPM4107T

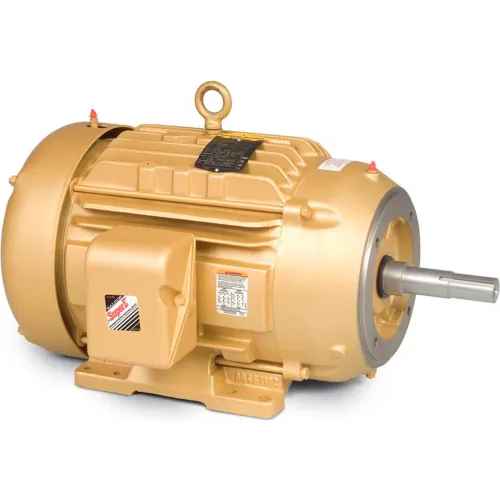

Baldor-Reliance Motor EJPM4107T, 25HP, 3520RPM, 3PH, 60HZ, 284JP, 0938M, TEFC, F

Product Description
Baldor-Reliance Motor, 25HP,3520RPM,3PH,60HZ,284JP,0938M,TEFC,F

Features:
  • Heavy gauge steel frames
  • Moisture resistant ISR® (Inverter Spike Resistant) copper windings
  • Over-sized ball bearings with locked drive end construction to minimize endplay
  • Low-loss electrical grade lamination steel
  • Open drip-proof, close coupled pump motors are furnished with rodent screens at both ends
Typical Applications:
Designed for a wide variety of applications for circulating and transferring fluids. Mounting designed to support pump unit.

PRICE
$5,579.00

1
1
Ships in 2 Business Days
Add or Change Zip Code(s)
Easy online or call-in returns. Read return policy

Key Specifications

BrandBaldor-Reliance

Weights & Dimensions

Weight286 lbs
Dimension C29-13/16 in

Product Details

Power Factor88
Bearing Opp Drive End6208
Drive End FlangeC-Face
KVA CodeJ
Motor RPM 60 Hertz3525 rpm
Mounting LocationRigid
Phase3
GreasePOLYREX EM
Manufacturers Part NumberEJPM4107T
EnclosureTEFC
Service Factor1.15
Bearing Drive End6312
RPM3,525 rpm
Insulation ClassF
Horsepower25 HP
Frame284JP
Hertz60 Hz
Design CodeB
Enclosure TypeTotally Enclosed
Voltage230, 460 V
Full Load Efficiency91.7
Full Load Amps58/29 FLA
Poles2
Ambient Temperature40 °C
RPM Range3001-3600 rpm
