Baldor-Reliance

Model # :WBB390219

MPN #: EJPM2538T

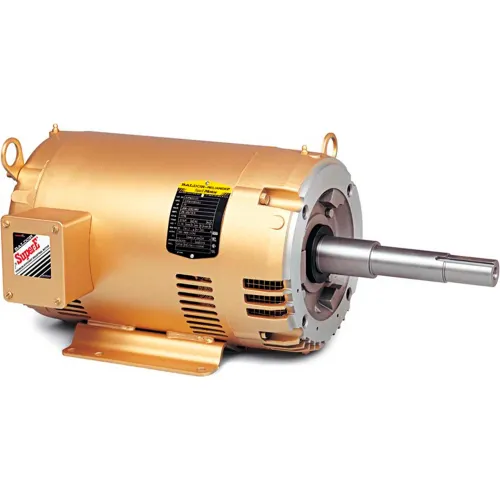

Baldor-Reliance Motor EJPM2538T, 40HP, 3510RPM, 3PH, 60HZ, 286JP, 3956M, OPSB, F

Product Description
Baldor-Reliance Motor, 40HP,3510RPM,3PH,60HZ,286JP,3956M,OPSB,F

Features:
  • Heavy gauge steel frames
  • Moisture resistant ISR® (Inverter Spike Resistant) copper windings
  • Over-sized ball bearings with locked drive end construction to minimize endplay
  • Low-loss electrical grade lamination steel
  • Open drip-proof, close coupled pump motors are furnished with rodent screens at both ends
Typical Applications:
Designed for a wide variety of applications for circulating and transferring fluids. Mounting designed to support pump unit.

PRICE
$7,235.00

1
1
Ships in 2 Business Days
Add or Change Zip Code(s)
Easy online or call-in returns. Read return policy

Key Specifications

BrandBaldor-Reliance

Weights & Dimensions

Weight279 lbs
Dimension C29-7/16 in

Product Details

Power Factor90
Bearing Opp Drive End6208
Drive End FlangeC-Face
KVA CodeH
Motor RPM 60 Hertz3510 rpm
Mounting LocationRigid
Phase3
GreasePOLYREX EM
Manufacturers Part NumberEJPM2538T
EnclosureOPSB
Service Factor1.15
Bearing Drive End6312
RPM3,510 rpm
Insulation ClassF
Horsepower40 HP
Frame286JP
Hertz60 Hz
Design CodeB
Amps @ 208V99 A
Enclosure TypeOpen/Drip Proof
Voltage230, 460 V
Full Load Efficiency92.4
Full Load Amps90/45 FLA
Poles2
Ambient Temperature40 °C
RPM Range3001-3600 rpm
