Baldor-Reliance

Model # :WBB390388

MPN #: EJPM4110T

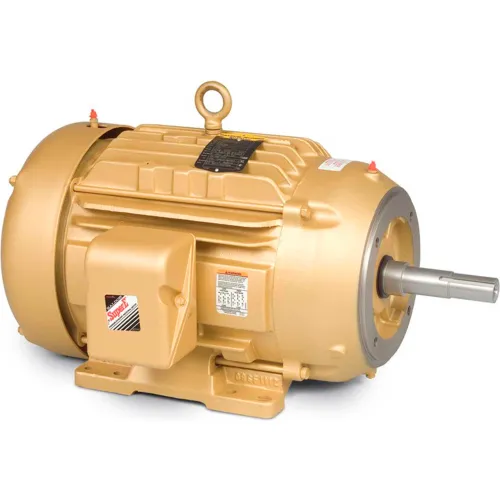

Baldor-Reliance Motor EJPM4110T, 40HP, 1775RPM, 3PH, 60HZ, 324JP, 1254M, TEFC, F

Product Description
Baldor-Reliance Motor, 40HP,1775RPM,3PH,60HZ,324JP,1254M,TEFC,F

Features:
  • Heavy gauge steel frames
  • Moisture resistant ISR® (Inverter Spike Resistant) copper windings
  • Over-sized ball bearings with locked drive end construction to minimize endplay
  • Low-loss electrical grade lamination steel
  • Open drip-proof, close coupled pump motors are furnished with rodent screens at both ends
Typical Applications:
Designed for a wide variety of applications for circulating and transferring fluids. Mounting designed to support pump unit.

PRICE
$9,299.00

1
1
Ships in 2 Business Days
Add or Change Zip Code(s)
Easy online or call-in returns. Read return policy

Key Specifications

BrandBaldor-Reliance

Weights & Dimensions

Weight618 lbs
Dimension C33-7/16 in

Product Details

Power Factor82
Bearing Opp Drive End6311
Drive End FlangeC-Face
KVA CodeH
Motor RPM 60 Hertz1775 rpm
Mounting LocationRigid
Phase3
GreasePOLYREX EM
Manufacturers Part NumberEJPM4110T
EnclosureTEFC
Service Factor1.15
Bearing Drive End6312
RPM1,775 rpm
Insulation ClassF
Horsepower40 HP
Frame324JP
Hertz60 Hz
Design CodeB
Amps @ 208V102 A
Enclosure TypeTotally Enclosed
Voltage230, 460 V
Full Load Efficiency94.1
Full Load Amps96/48 FLA
Poles4
Ambient Temperature40 °C
RPM Range1701-1800 rpm
