Baldor-Reliance

Model # :WBB390387

MPN #: EJPM4108T

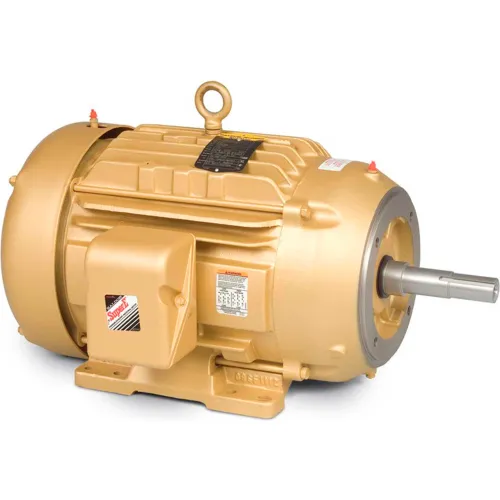

Baldor-Reliance Motor EJPM4108T, 30HP, 3520RPM, 3PH, 60HZ, 286JP, 1038M, TEFC, F

Product Description
Baldor-Reliance Motor, 30HP,3520RPM,3PH,60HZ,286JP,1038M,TEFC,F

Features:
  • Heavy gauge steel frames
  • Moisture resistant ISR® (Inverter Spike Resistant) copper windings
  • Over-sized ball bearings with locked drive end construction to minimize endplay
  • Low-loss electrical grade lamination steel
  • Open drip-proof, close coupled pump motors are furnished with rodent screens at both ends
Typical Applications:
Designed for a wide variety of applications for circulating and transferring fluids. Mounting designed to support pump unit.

PRICE
$7,649.00

1
1
Ships in 2 Business Days
Add or Change Zip Code(s)
Easy online or call-in returns. Read return policy

Key Specifications

BrandBaldor-Reliance

Weights & Dimensions

Weight435 lbs
Dimension C31-1/2 in

Product Details

Power Factor87
Bearing Opp Drive End6309
Drive End FlangeC-Face
KVA CodeG
Motor RPM 60 Hertz3520 rpm
Mounting LocationRigid
Phase3
GreasePOLYREX EM
Manufacturers Part NumberEJPM4108T
EnclosureTEFC
Service Factor1.15
Bearing Drive End6312
RPM3,520 rpm
Insulation ClassF
Horsepower30 HP
Frame286JP
Hertz60 Hz
Design CodeB
Enclosure TypeTotally Enclosed
Voltage208 - 230, 460 V
Full Load Efficiency91.7
Full Load Amps76-70/35 FLA
Poles2
Ambient Temperature40 °C
RPM Range3001-3600 rpm
