Applications:
- Grain handling
- Chemical, oil & gas
- Pulp & paper, forest products
- Metals & foundries
- Cement, aggregate & above ground mining
- Food processing
- Power generation
- Water & wastewater treatment
Baldor-Reliance Motor 40HP, 3530RPM, 3PH, 60HZ, 324TS, 1064M, TEFC, F
Write a Review
|
Questions & Answers (0)
Product Description

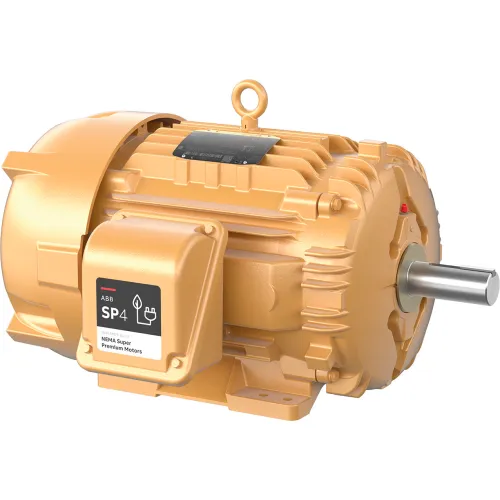

Severe duty, three phase, totally enclosed, 40HP, 3530RPM, 3PH, 60HZ, 324TS, 1064M, TEFC, F230/460.
Applications:
Applications:
PRICE
$13,699.00
1
1
Ships in 5 Business Days
Add or Change Zip Code(s)
Easy online or call-in returns. Read return policy
Key Specifications
| Brand | Baldor-Reliance |
Weights & Dimensions
| Weight | 451 |
| Dimension C | 29-1/8 in |
Product Details
| Power Factor | 91 |
| Bearing Opp Drive End | 6311 |
| KVA Code | G |
| Motor RPM 60 Hertz | 3600 rpm |
| Mounting Location | Rigid |
| Phase | 3 |
| Manufacturers Part Number | SPM4109TS |
| Enclosure | TEFC |
| Service Factor | 1.15 |
| Bearing Drive End | 6311 |
| Insulation Class | F |
| Horsepower | 40 HP |
| Frame | 324TS |
| Hertz | 60 Hz |
| Design Code | A |
| Enclosure Type | Totally Enclosed |
| Voltage | 230/460 V |
| Full Load Efficiency | 93.6 |
| Nameplate RPM | 3530 rpm |
| Full Load Amps | 45 FLA |
| Duty | Continuous |
| Poles | 2 |
| Ambient Temperature | 40 °C |
