Baldor-Reliance

Model # :WBB390312

MPN #: EJPM3714T

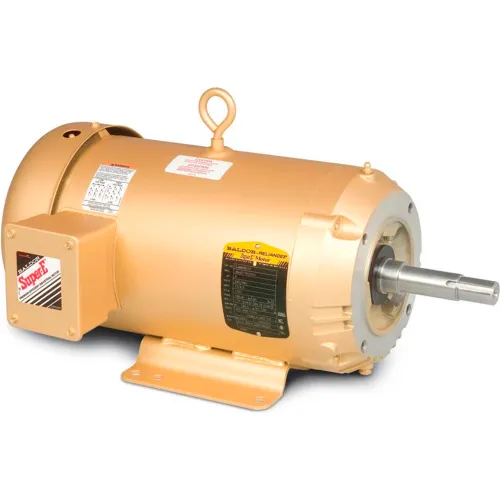

Baldor-Reliance Motor EJPM3714T, 10HP, 1770RPM, 3PH, 60HZ, 215JP, 3752M, TEFC, F

Product Description
Baldor-Reliance Motor, 10HP,1770RPM,3PH,60HZ,215JP,3752M,TEFC,F

Features:
  • Heavy gauge steel frames
  • Moisture resistant ISR® (Inverter Spike Resistant) copper windings
  • Over-sized ball bearings with locked drive end construction to minimize endplay
  • Low-loss electrical grade lamination steel
  • Open drip-proof, close coupled pump motors are furnished with rodent screens at both ends
Typical Applications:
Designed for a wide variety of applications for circulating and transferring fluids. Mounting designed to support pump unit.

PRICE
$2,635.00

1
1
Ships in 2 Business Days
Add or Change Zip Code(s)
Easy online or call-in returns. Read return policy

Key Specifications

BrandBaldor-Reliance

Weights & Dimensions

Weight165 lbs
Dimension C26-5/16 in

Product Details

Power Factor85
Bearing Opp Drive End6206
Drive End FlangeC-Face
KVA CodeK
Motor RPM 60 Hertz1770 rpm
Mounting LocationRigid
Phase3
Manufacturers Part NumberEJPM3714T
EnclosureTEFC
Service Factor1.15
Bearing Drive End6309
RPM1,770 rpm
Insulation ClassF
Horsepower10 HP
Frame215JP
Hertz60 Hz
Design CodeA
Enclosure TypeTotally Enclosed
Voltage208 - 230, 460 V
Full Load Efficiency91.7
Full Load Amps25.4-24/12 FLA
Poles4
Ambient Temperature40 °C
RPM Range1701-1800 rpm
